FEATURES:

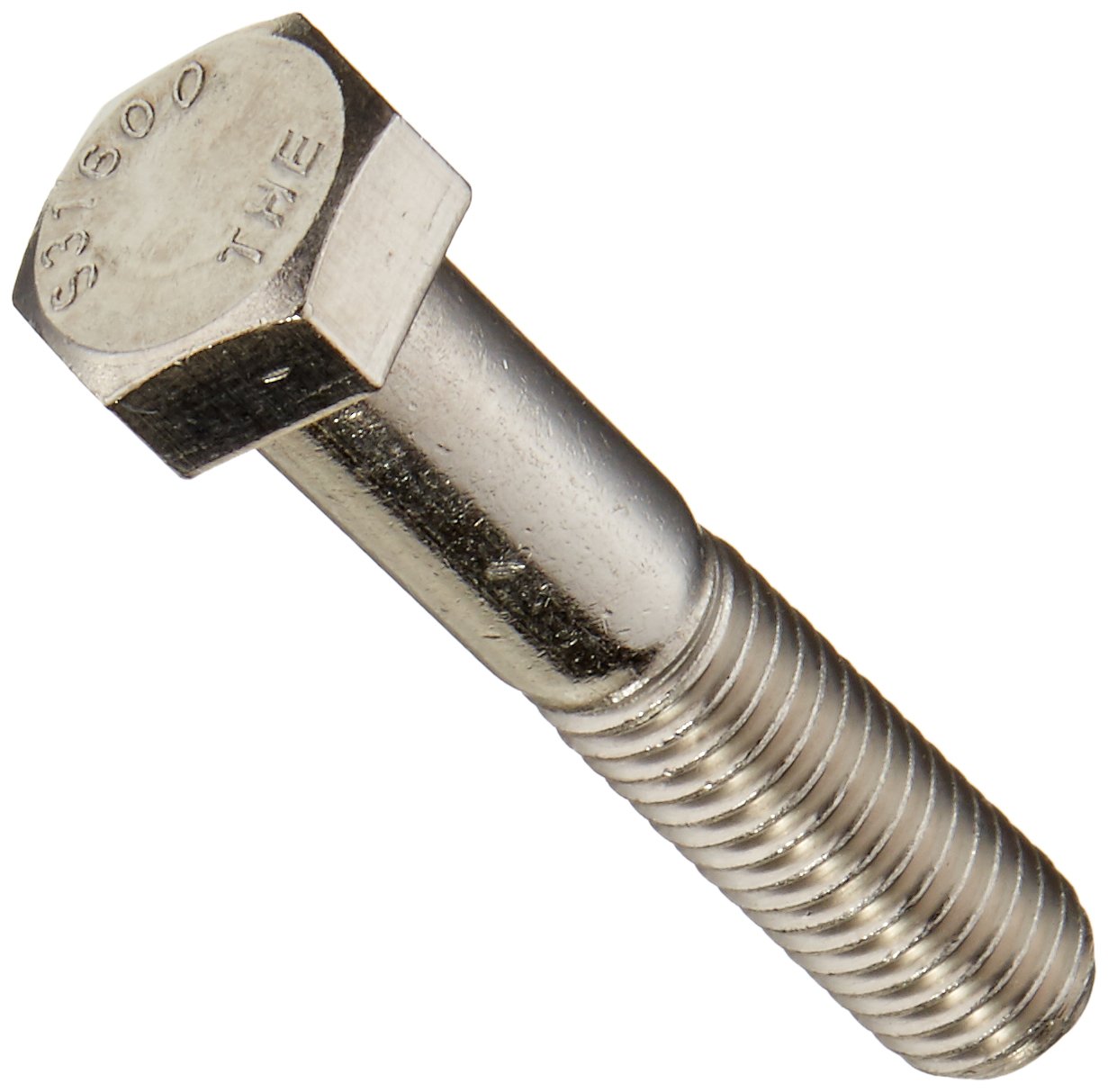

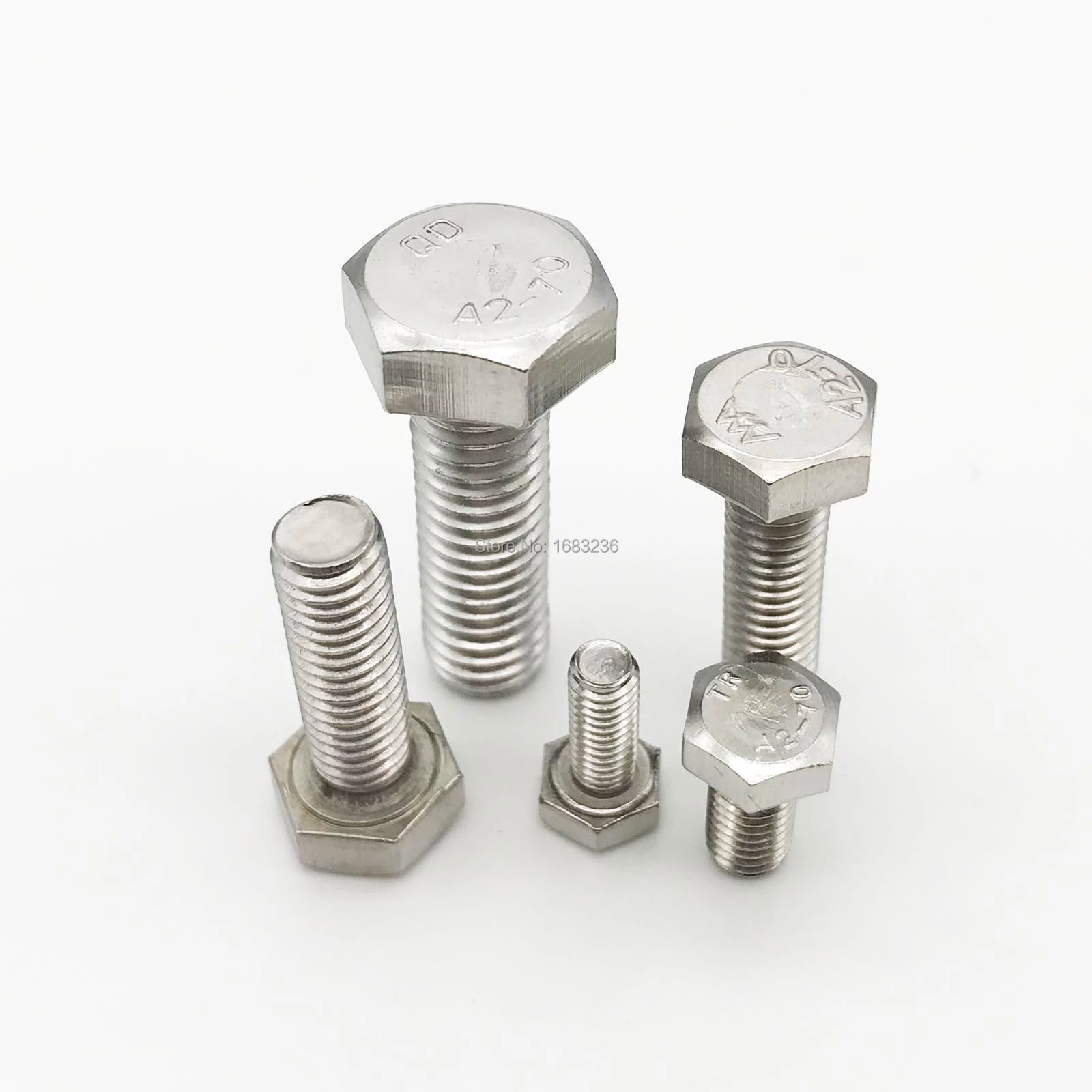

Item: hexagonal screw
Material: stainless steel 304
Color: stainless steel
Drive Head: hexagon head
Size: M4-M36
Product Size: thread diameter (D) * thread length (L)
SPECIFICATIONS:
Steel : 304 Stainless
Size: Metric
| | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M36 |
| | 0.7P | 0.8P | 1.0P | 1.25P | 1.5P | 1.75P | 2.0P | 2.0P | 2.5P | 2.5P | 2.5P | 3.0P | 3.0P | 3.5P | 4.0 |
| 8 | 2.75 | | | | | | | | | | | | | | |
| 10 | 2.75 | 2.75 | 3.00 | 5.00 | | | | | | | | | | | |
| 12 | 2.75 | 2.75 | 3.00 | 5.00 | | | | | | | | | | | |
| 15 | | 2.75 | 3.25 | 5.00 | 8.75 | | | | | | | | | | |
| 16 | 2.75 | 2.75 | 3.25 | 5.00 | 8.75 | | | | | | | | | | |
| 20 | 2.75 | 2.75 | 3.25 | 5.75 | 10.00 | 16.50 | | | | | | | | | |
| 25 | 3.50 | 3.50 | 3.50 | 6.75 | 11.25 | 17.75 | 44.25 | 38.75 | | | | | | | |
| 30 | 4.25 | 4.25 | 4.25 | 7.50 | 12.25 | 18.75 | 44.25 | 38.75 | 99.50 | | | | | | |
| 35 | 5.25 | 5.25 | 5.50 | 8.25 | 13.25 | 21.00 | 45.25 | 39.75 | 99.75 | 97.25 | | | | | |
| 40 | 5.50 | 5.50 | 5.50 | 8.75 | 14.50 | 22.25 | 46.50 | 42 | 99.75 | 97.25 | | | | | |
| 45 | 5.50 | 5.75 | 5.75 | 9.25 | 15.50 | 25.50 | 48.50 | 44.25 | 101.50 | 99.50 | | | | | |
| 50 | 5.75 | 5.75 | 6.00 | 10.00 | 16.50 | 26.50 | 51.75 | 48.50 | 104.75 | 101.50 | 204.00 | 209.75 | | | |
| 55 | | 7.50 | 8.00 | 12.25 | 19.75 | 29.75 | 55.25 | 51.75 | 108.25 | 104.75 | 210.00 | 215.25 | | | |
| 60 | | | 9.25 | 12.25 | 20.25 | 32.25 | 59.75 | 55.25 | 116 | 108.25 | 216.00 | 220.75 | 468.00 | 480.00 | 576.00 |
| 65 | | | 11.25 | 14.50 | 23.25 | 34.25 | 66.25 | 57.50 | 124.75 | 113.25 | 222.00 | 226.50 | 492.00 | 504.00 | 600.00 |
| 70 | | | 12.25 | 16.25 | 24.25 | 62.50 | 72.75 | 60.75 | 132.50 | 118.25 | 22.00 | 231.75 | 516.00 | 528.00 | 624.00 |
| 75 | | | 13.25 | 17.00 | 26.00 | 40.75 | 79.50 | 66.25 | 135.75 | 125.50 | 234.00 | 237.50 | 540.00 | 552.00 | 648.00 |
| 80 | | | 14.50 | 17.75 | 27.75 | 44.25 | 82.75 | 74.00 | 139.25 | 132.50 | 240.00 | 242.75 | 588.00 | 600.00 | 696.00 |
| 90 | | | 17.75 | 21.00 | 33.25 | 48.50 | 88.50 | 82.75 | 154.50 | 139.50 | 258.00 | 265.00 | 624.00 | 629.50 | 720.00 |
| 95 | | | | 23.25 | | | | | | 146.75 | | 276.00 | | | |
| 100 | | | 19.75 | 24.25 | 36.50 | 53.00 | 110.50 | 88.50 | 182.25 | 154.50 | 282.00 | 287.25 | 684.00 | 696.00 | 792.00 |
| 110 | | | 31.00 | 33.25 | 44.25 | 60.75 | 132.50 | 139.25 | 220.75 | 194.50 | 306.00 | 309.25 | 756.00 | 768.00 | 864.00 |
| 120 | | | 35.50 | 37.50 | 47.50 | 65.25 | 149.25 | 154.50 | 265 | 209.75 | 330.00 | 331.25 | 828.00 | 840.00 | 936.00 |
| 130 | | | 40.75 | 42.00 | 50.75 | 69.50 | 165.75 | 182.25 | 309.25 | 231.75 | 348.00 | 353.25 | 876.00 | 888.00 | 984.00 |
| 140 | | | 45.25 | 46.50 | 54.25 | 74.00 | 182.25 | 209.75 | 353.25 | 254.00 | 372.00 | 375.50 | 924.00 | 936.00 | 1032.00 |
| 150 | | | 49.75 | 50.75 | 57.50 | 78.50 | 198.75 | 231.75 | 397.50 | 276.00 | 396.00 | 397.50 | 960.00 | 972.00 | 1068.00 |
| 160 | | | | 86.25 | 99.25 | 92.75 | 254.00 | 287.25 | 419.50 | 397.50 | 414.00 | 419.50 | 1020.00 | 1032.00 | 1128.00 |
| 170 | | | | 93.75 | 108.00 | 101.50 | 298.25 | 331.25 | 441.75 | 419.50 | 438.00 | 441.75 | 1068.00 | 1080.00 | 1176.00 |
| 180 | | | | 107.25 | 123.25 | 110.50 | 342.25 | 375.50 | 463.75 | 441.75 | 462.00 | 463.75 | 1674.00 | 1128.00 | 1124.00 |
| 190 | | | | 116.00 | 133.50 | 119.25 | 386.50 | 419.50 | 485.75 | 474.75 | 480.00 | 485.75 | 1176.00 | 1188.00 | 1284.00 |
| 200 | | | | 127.00 | 146.00 | 128.25 | 430.50 | 463.75 | 507.75 | 496.75 | 504.00 | 507.75 | 1248.00 | 1260.00 | 1356.00 |
| 210 | | | | | 158.75 | | | | | | | | | | |
