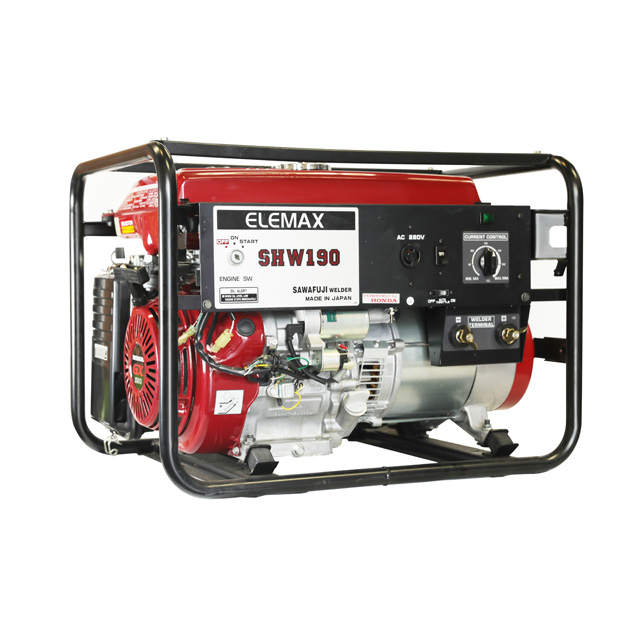

FEATURES
-Honda OHV 4-stroke Engine
-190amps Maximum DC Power for Welding
-17 liter Large Capacity Fuel Tank with Fuel Gauge
-Compact and Light Weight
-Stable-Arc 6-Phase Half Wave Current for Welding
| Model | SHW190 | |||||
| Type | R | S | L | |||
| Generator | Frequency (Hz) | 50 | 60 | |||
| Type | 2-pole, Field Rotating Type | |||||
| Phase | Single | |||||
| AC Output | Rated Power (KVA) |
50Hz | 2.0 | - | - | |
| 60Hz | - | 3.0 | 4.0 | |||
| Rated Voltage (V) | 220 | 110 | ||||
| Rated Power Factor (cosφ) | 1.0 | |||||
| Welder(DC) | Type | 2-pole, Field Rotating Type | ||||
| Rectifier Type | Six Phase Half Wave Rectifier | |||||
| Rated Output | 3,600rpm | 140A 26V | ||||
| Current Control Range (A) | 50 - 190 | |||||
| Rated Duty Cycle (%) | 50 | |||||
| Welding Rod | 2.6 to 5.0 mm dia. | |||||
| Engine | Maker | HONDA | ||||
| Model | GX390 | |||||
| Displacement (CC) | 389 | |||||
| Net Power (kW) | 3,600rpm | 8.7 | ||||
| Ignition System | Transistor | |||||
| Oil Alert System | YES | |||||
| Starting System | Recoil (OP;Electric) | |||||
| Others | L x W x H (mm) | 679 x 511 x 490 | ||||
| Dry Weight (kg) | 88 | |||||
| Fuel Tank Capacity (liters) |
17 | |||||
| Sound Level [dB(A)/7m] |
50Hz | 73 | ||||
| 60Hz | 75 | |||||
| Continuous Operating Hours (hr) | 50Hz | 6.2 | ||||
| 60Hz | 5.2 | |||||
