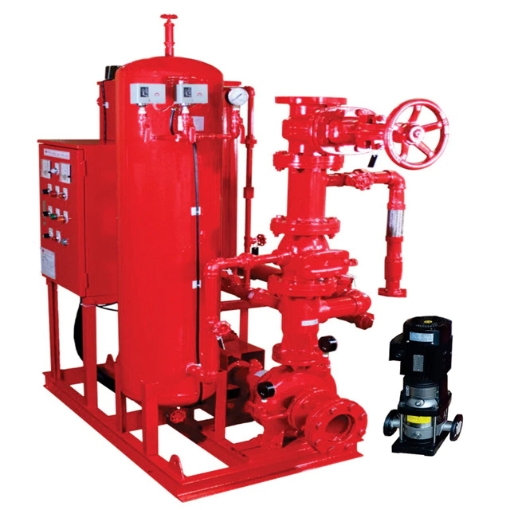

EVERGUSH FIRE FIGHTING PUMP SET FF80-XA3220-27.5

Manufacturer: Evergush
Fire-fighting Pump Set
SKU: FF80-XA3220-27.5
*
₱5.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Evergush Logo Taiwan

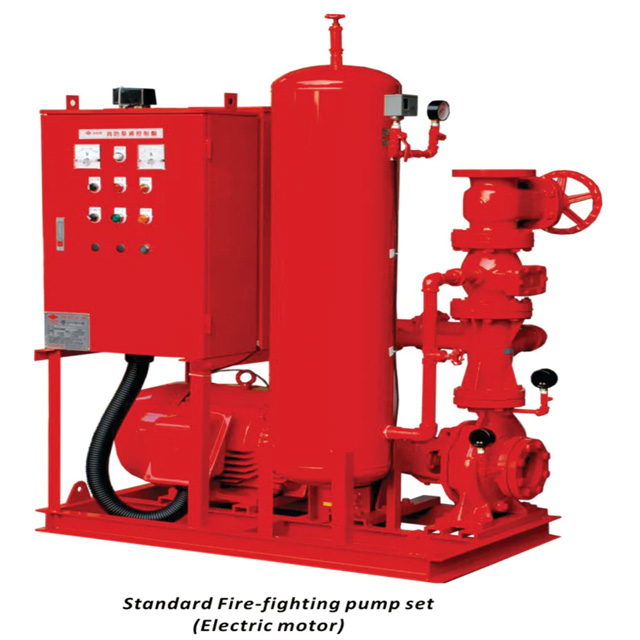

Fire-Fighting Pump Set
FF-Series (60Hz)

Applications

  • Water supply and auto boost water pressure to the fire sprinkler system, fire hydrant, fire foam system of the buildings, malls, hotels, factories, stadium, parking area, stations, airports, schools.
Model
Without Jockey PumpWith Jockey Pump
FF80-XA3220-27.5FF100-XA5016-211FF100-XA5016-211
Rated Q:13m3/hr46m3/hr46m3/hr
Rated H:61 meters45 meters45 meters
Driven Electric Motor:3 Phase/ 220V~60Hz
3500 rpm / 7.5KW (10HP)
3 Phase/ 220V~60Hz
3500 rpm / 11KW (15HP)
3 Phase/ 220V~60Hz
3500 rpm / 11KW (15HP)
Suction Pipe:80mm (3")100mm (4")100mm (4")
Discharge Pipe:80mm (3")100mm (4")100mm (4")

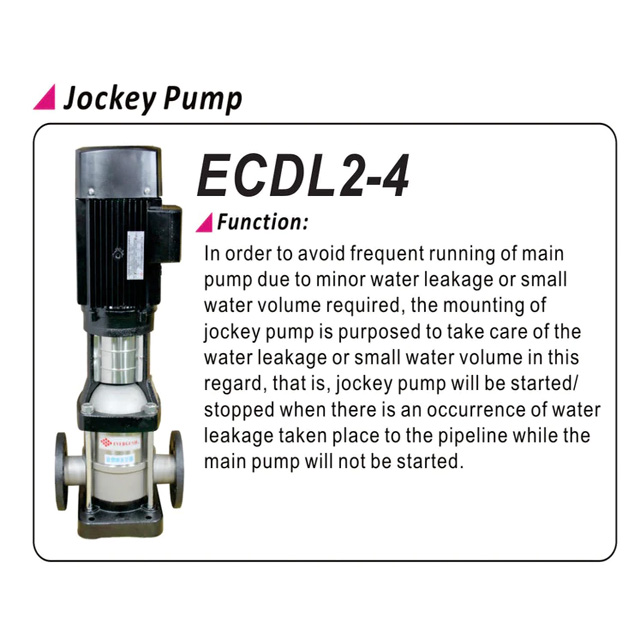

 Jockey Pump Function & Specifications

In order to avoid frequent running of main pump due to minor water leakage or small water volume required, the mounting of jockey pump is purposed to take care of the leakage or small water volume in this regard. Jockey Pump will be started/stopped when there is an occurrence of water leakage taken place to the pipeline while the main pump will not be started.

ModelECDL2-4
Rated Q:4m3/hr
Rated H:22 meters
Driven Electric Motor:3 Phase/ 220V~60Hz
3500 rpm / 1.1 kW (1.5HP)
Suction Pipe:40mm (1.5")
Discharge Pipe:40mm (1.5")
