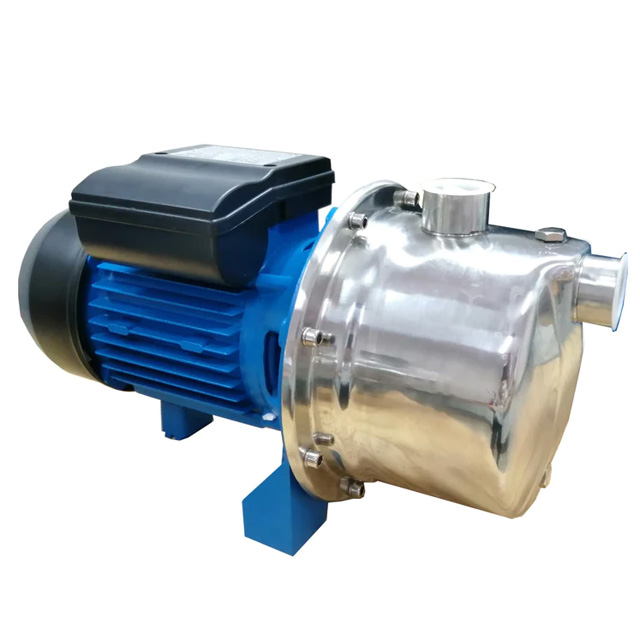

ZACCHI SHALLOW WELL JET PUMP ZJS-400

Manufacturer: Zacchi Italy
Shallow Well Jet Pump ZJS
*
₱5.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options


Zacchi ZJS Shallow Well Jet Water Pump

Uses and Installations
They are recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials of which the pump is made.
Due to the ir reliability, simplicity of use and economy, they are suitable for domestic use and in particular for distributing water in combination with small autoclaves, for irrigating applications. The pump must be installed in enclosed places or at least protected against inclement weather.

Limits of Use
Suction height up to 9m
Liquid temperature up to +40°C
Environmental temperature up to +40°C

Construction Characteristics
Pump Body: Cast Iron
Impeller: Brass, with radial peripheral vanes.
Motor Shaft: 45#steel or stainless steel 304
Mechanical Seal: Ceramic - graphite
Electric Motor: Single Phase with condenser and thermal overload protector built into the copper winding.
Insulation: Class B
Protection: IP44

ModelPowerSize (inch)Max Head (m)Max Flow (l/min)Suction Max. (m)
ZJS-4000.50 HP1"30508
ZJS-6000.80 HP1"35508
ZJS-8001.10 HP1"42509
