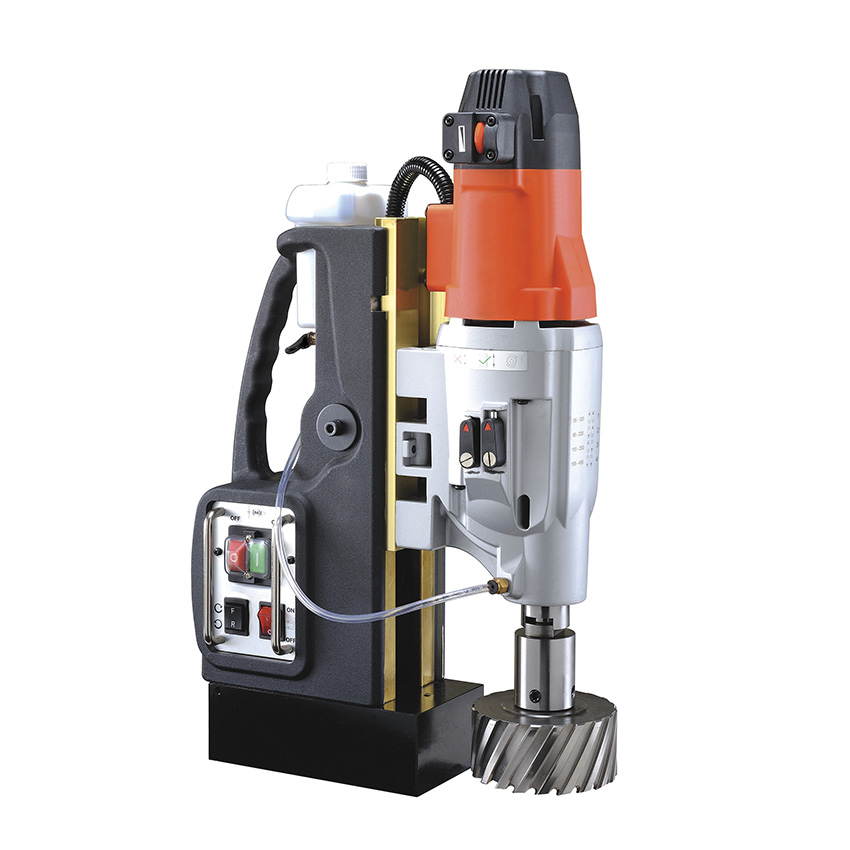

    AGP 4 Speed Magnetic Drilling Machine MD120/4

    Manufacturer: AGP
    4 Speed Magnetic Drilling Machine
    SKU: MD120/4
    Availability: In stock
    ₱280,000.00
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: 3-5 days

    FEATURES:

    • 2 000 W motor with overload protection
    • Stepless variable speed control with constant speed electronics
    • Four speed gearbox with mechanical clutch
    • MT3 spindle for a wide range of cutting tools and attachments to be directly mounted
    • Unique through-the-spindle cutting fluid feed system
    • Reversible motor rotation for tapping
    • Special tang-drive arbors for both 31.75mm and  19.05mm shank cutters included

    SPECIFICATIONS:

    ModelMD120/4
    Power Input110-120V:1700W, 220-240V:2000W
    Voltage110-120V~ 50-60Hz, 220-240V~ 50-60Hz
    No/Full Load Min-1Speed 135-120
    Speed 270-220
    Speed 380-250
    Speed 4140-450
    Max. CapacityDia. X Depth of Cut with 31.7mm (1-1/4") Weldon Shank Annular Cutter Arbor 120mm x 50mm
    Dia. X Depth of Cut with 19.05mm (3/4") Weldon Shank Annular Cutter Arbor120mm x 50mm
    Dia. X Depth of Cut with Quick-Release Arbor 60mm x 50mm
    Dia. X Depth of MT3 Twist Drill Bit32mm x 200mm
    Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit16mm x 120mm
    Dia. X Depth of Taps32mm x 40mm
    Overload ProtectionWith
    Magnetic Adhesion32,000 N
    Net Weight29.4kg(64.82Lbs)

    Standard Accessories: Wrench M8, Hex Key M2.5 & M5, Chip Guard Kit, Coolant Tank Kit,

    Safety Chain, Drift, 31.75 Annular Cutter Set, Screw Arbor, 19.05 Annular Cutter Set Screw Arbor

    BRAND : AGP

    WARRANTY DURATION :  6 Months

    WARRANTY TYPE : Supplier

    WARRANTY REPAIR : https://unlistore.ph/warranty-and-repair-center
